Note before order

This is a Wi-Fi only Curtain Switch, it can’t work with our RF curtain remote. Please don’t buy the extra RF remote to add the remote control, they are not compatible.

- Please check your motor is with 4 wires (Blue Wire, Brown wire, Black Wire, Green/Yellow Wire) before you buy our.
- Before using App to control the shutter, please keep the wall manual switch at 'STOP' position, otherwise , the App can't work, it's to protect the motor.
- Please be noted the max duration time is 120 seconds for this smart device.

NEW Generation - NEW Function - percentage control

You can set percentage control on App

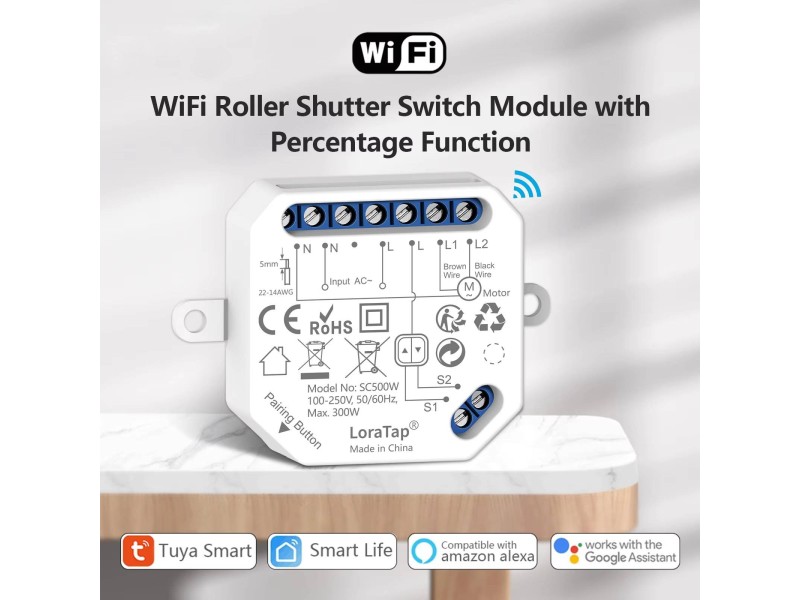

NEW WiFi Smart Curtain Blind Switch Module Make your roller shutter smart

After you install this module, your wall manual switch still works, it can open , pause, or close the shutter, and also it becomes smart.
1. Mobile phone remote control open or close
2. You can set timer schedule for when to open or close your window or roller shutter
3. Voice Control with Google Home, Amazon Alexa

Hands free- Voice Control

Voice Control with Google Home, Amazon Alexa

Remote control with your mobile anywhere even you are not at home

- Group Function and Device Sharing

You can create group in the APP to manage all the blinds in your house and share the device to all your family members.

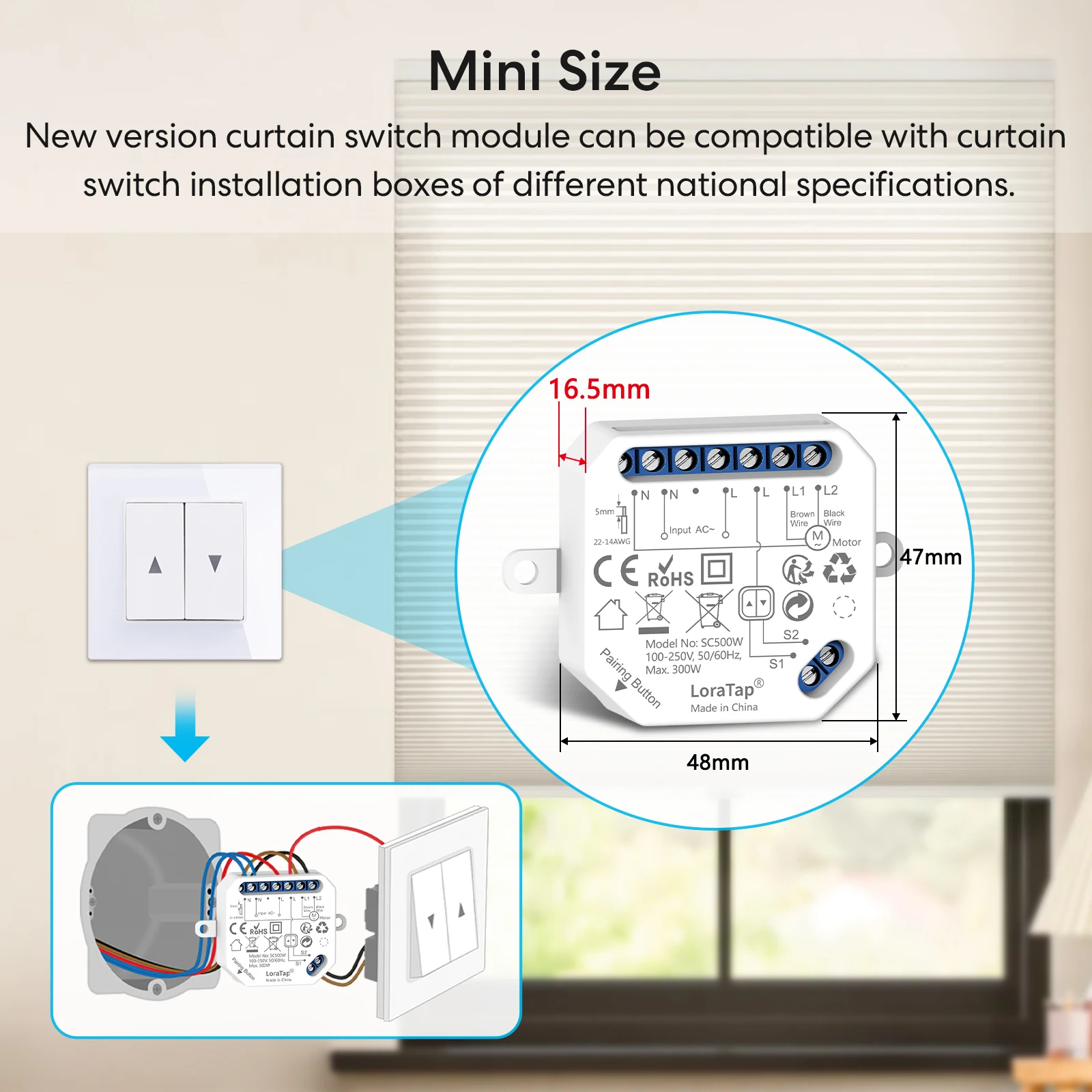

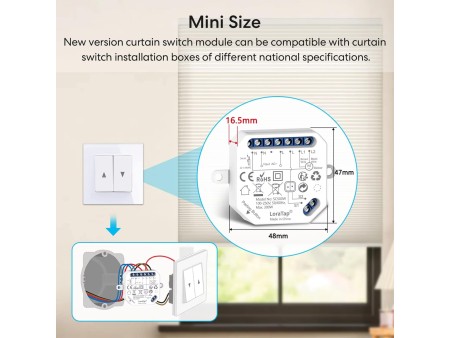

Compact Mini size

Tiny size design enable it can fit most junction box.

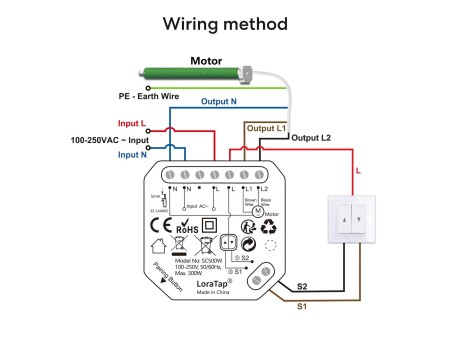

Wiring diagram

- If you need to connect with your manual switch, please refer to below wiring diagram .
- To protect the motor, before using App to control the shutter, please keep the wall manual switch at 'STOP' position.
- If you need any help for how to connect the module, please be free to contact with seller.

Specification

Input voltage: 100-250VAC, 50/60Hz
Wiring: Neutral Wire, L1, L2, Earth Wire
Max Load: 300 W
Wi-Fi Standard: 2.4 GHz 802.11 b / g / n (Not support 5Ghz Wi-Fi)
Standby Consumption: below 0.5W

APP Name: Smart Life or Tuya
Voice Control: Google Assistant, Amazon Alexa
Plastic Material: Fireproof ABS
Certification: CE, EMC, RED, RoHS
Patented Product: Yes
Produced by ISO9001 Factory: Yes

We have all the accessories you need in the box, you don't need to pay extra cost.

What's in the box?

1 * Wi-Fi Smart Curtain Switch Module
3 * Cable for Wiring
1 * Double-Sided Tape
1 * User Guide

This is a WiFi Only Product. It can't work with any RF remote in our store.

Please don’t buy any extra RF remote in our store to work with this WiFi only curtain switch.
